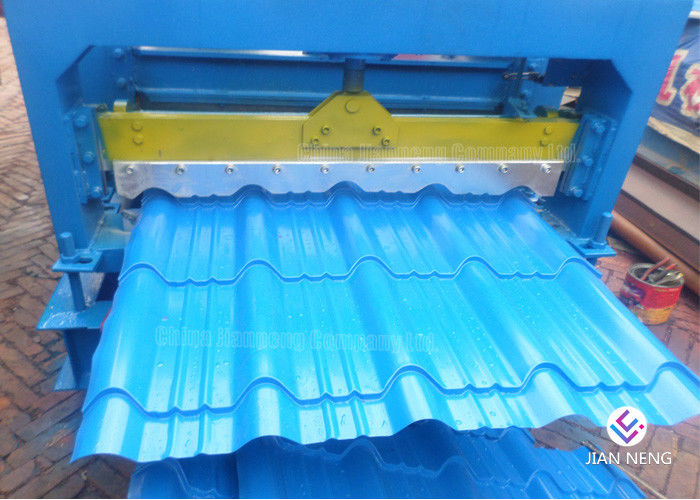

Metal Sheet Glazed Tile Roll Forming Machine , PPGI Steel Roof Making Machine Production Line
Description of Roofing Building Making Machine:

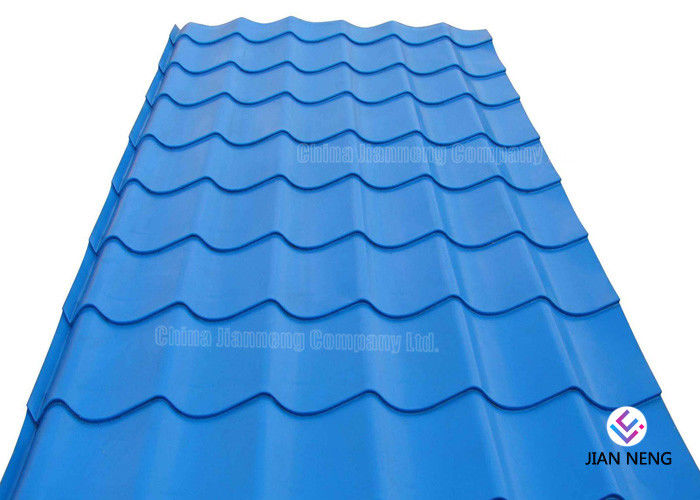

The GI / PPGI wall and roof roll forming machine for cold roll forming can produce various of galvanized and prepainted steel roof and wall panel, the panels are widely used as the roof and wall of building constructions, such as warehouse, garage, gymnasium, exhibition center, cinema, theatre wall and roof buildings, etc.
The wall and roof roll forming machine can work 16-24 hours per day, motor perform good.
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 18groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 5.5kw
(9) Driven type: 1.0＂Chain
(10) Speed: 4m/min
Specification / Technical Parameter
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Feeding Coil width | 1000mm/1200mm |
| 4 | Effective width | 800mm/1000mm |
| 5 | Under frame | 350H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| 7 | Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | Guide pillar memorial archway |
| 9 | Forming stations | 16 |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 4kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 4kw, Lichao, Shanghai |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
Components of glazed tile roll forming machine:
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
